Plant Communication System

Acoustic Hood


  FRP Acoustic Hood and Aluminum Acoustic Hood



ACOUSTIC HOOD
is used in industrial plant environment to facilitate the user to have easy communication in High Noisy Areas. It is used in those areas of the plant where presence of high ambient noise creates difficulties for the user to have comfortable communication.

Two variants of Acoustic Hood are available; Acoustic Hood in FRP – Fiber Reinforced Plastic and Acoustic Hood in Aluminum

Acoustic Hood in FRP

Suitable for both external or internal use
Material: Fiber Reinforced Plastic
Noise reduction up to -14dB.
Suitable for hazardous and non-hazardous arduous areas, Corrosion resistance,     Extremely robust and weatherproof
UV resistance for longer service life
Color: YELLOW
Hood Mounting: The hood is suitable for wall or column mounting. It is fixed via    two brackets in CRCA, which are secured to hood’s back panel
 Telephone mounting insidethe HOOD: Removable type, aluminum (powder coated)   plate of 2mm thickness, is provided inside, on inner back wall. The phone is    mounted at site on this mounting plate.
Acoustic insulation: Polyurethane acoustic insulation, in plain surface design, fire   retardant, thickness 25 mm ~ 50mm, between outer shell & inner shell.
Hood Dimensions: 620 mm (H) x 625 mm (W) x 530 mm (D) Approximately
Weight: Approximate weight 25 Kg.

Acoustic Hood in Aluminum

Suitable for both external or internal use
Material: Aluminum, powder coating. The outer shell is in aluminum (1.5 mm thick)   with powder coat finish and inner shell is perforated, in aluminum (1 mm thick)      having the same paint finish. The 35 mm cavity is filled with acoustic insulation.
Noise reduction up to -14dB.
Suitable for hazardous and non-hazardous arduous areas, Corrosion resistance,    Extremely robust and weatherproof
Color: YELLOW
Hood Mounting: The hood is suitable for wall or column mounting. It is mounted via    aluminum bracket that are provided on four corners of the hood’s back panel
 Telephone mounting insidethe HOOD: Removable type, aluminum (powder coated)   plate of 2mm thickness, is provided inside, on inner back wall. The phone is    mounted at site on this mounting plate.
Acoustic insulation: Polyurethane acoustic insulation, in plain surface design, fire    retardant, thickness 25 mm ~ 50mm, between outer shell & inner shell.
Hood Dimensions: 800 mm (H) x 770 mm (W) x 575 mm (D) Approximately
Weight: Approximate weight 20 Kg.


For more information and DETAILED product catalogue please write to us.









  ACOUSTIC HOOD

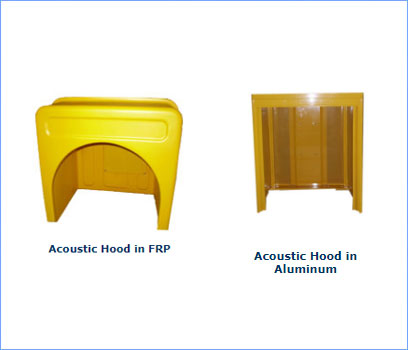

  Acoustic Hood in FRP










  Acoustic Hood in Aluminum

  Acoustic Hood in Aluminum
